KEF-A intelligent electromagnetic flowmeter

This product is specially designed for the metering of water leaving the factory of water supply enterprises, regional metering in the pipeline network (primary and secondary zoning), and the metering of large water users. It features high precision at low flow rates, continuous high power supply, flexible and diverse power supply methods, as well as self-diagnosis and online calibration.

Water supply enterprises implement zonal metering for pipe networks
Water supply enterprises' raw water, effluent water, boundary measurement, etc
Online flow monitoring of water supply networks in water enterprises

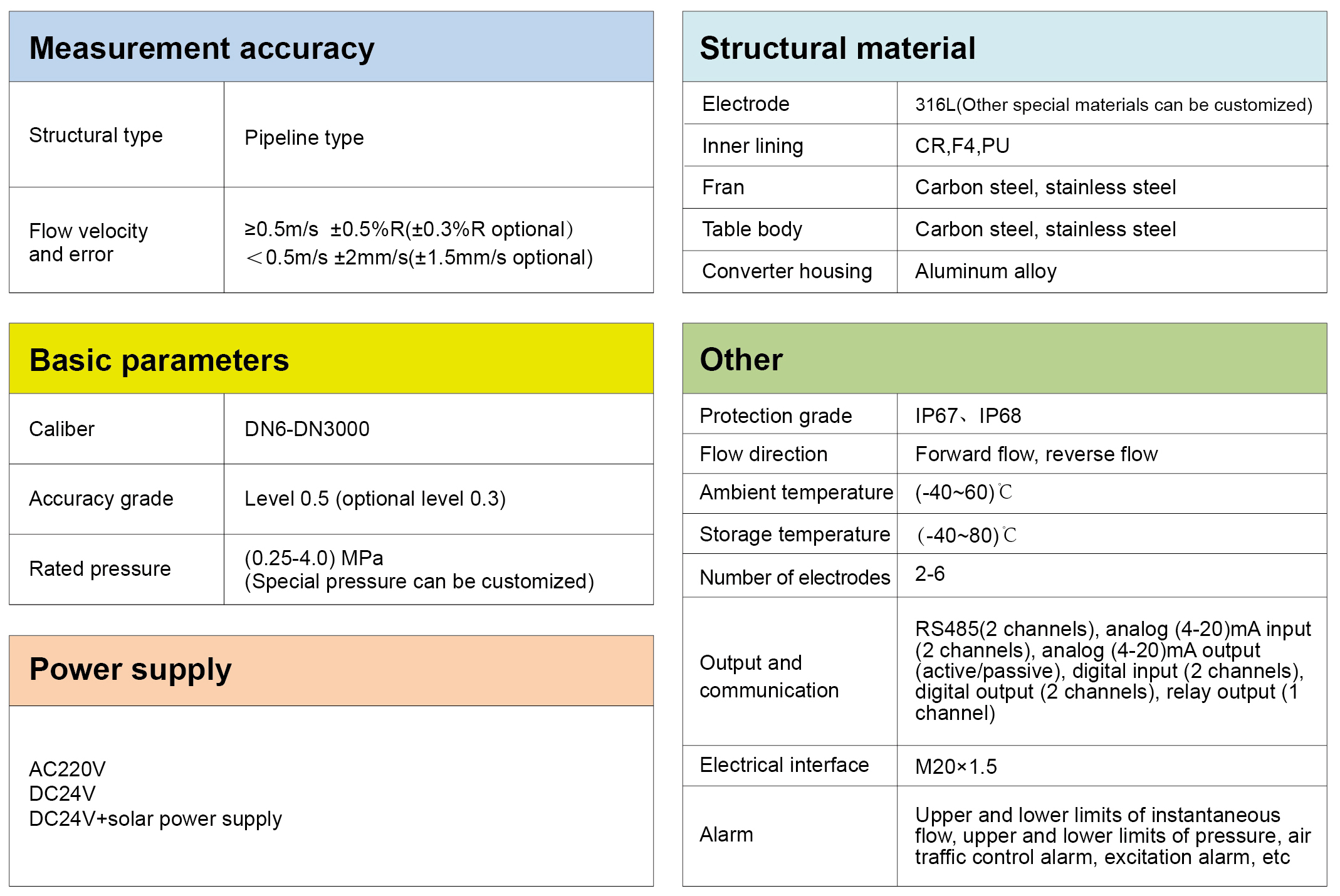

Product Features Technical parameters

High precision

20.5m/s, +0.5%R(±0.3%R is optional);<0.5m/s, +2mm/s(+1.5mm/s optional)

Capacitive touch key

Without damaging the sealing structure of the instrument, the key function is realized to ensure the reliability of long-term use

Pressure detection function (optional)

The pressure transmitter is directly integrated into the electromagnetic flowmeter, eliminating the need to drill additional holes in the pipeline for installation

Low flow rate and high precision

It can still maintain a certain accuracy at low flow rates :<0.5m/s, ±2mm/s(±1.5mm/s is optional)

OLED display

It adopts an OLED screen, featuring high brightness, high resolution and good temperature adaptability (-40 to 60 ℃), ensuring clear display even when directly exposed to the sun

Measurable liquid

Adopting optimized algorithms, it responds quickly and can measure pulp such as paper pulp, wood pulp, sand pulp and mineral pulp, and is suitable for industrial process control

Powerful simulation function

Simulable output: pulse/frequency signal (active/passive), (4-20)mA signal (active/passive), analog metering (within the measurement range)

Powerful diagnostic function

It can detect signal voltage, electrode resistance, and the status of various input and output signals, and conduct real-time monitoring of the instrument's operating status
